Data Loads and Usages
The function "Data Loads and Usages" provides you with an overview of the data volume, loads, and usages of InfoProviders, Process Chains, Workbooks, and Queries in the SAP BW environments. So you can get information about e.g. the last usage via Queries, the number of entries in InfoProvider tables, or the approximate total memory consumption in HANA.

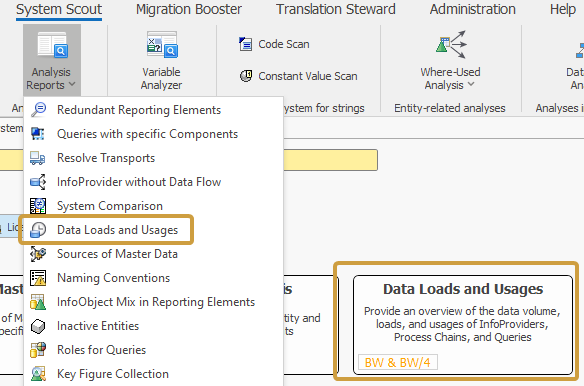

The function "Data Loads and Usages" can be found in analysis reports, in the search view:

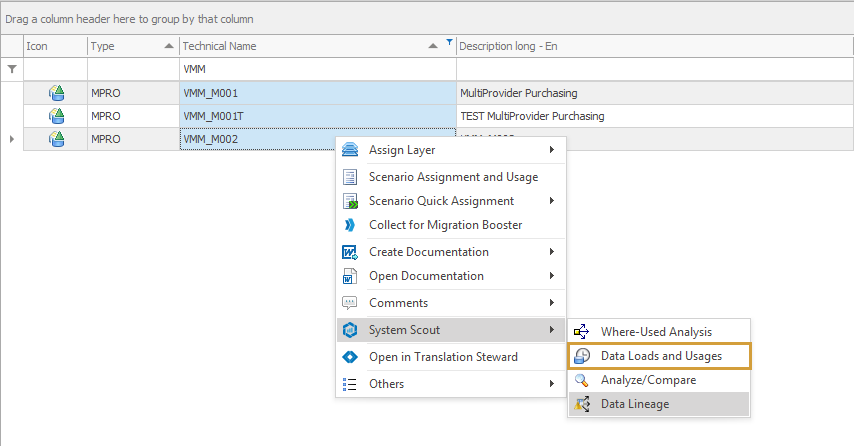

...and in the context menu of supported objects in the Entity Grid:

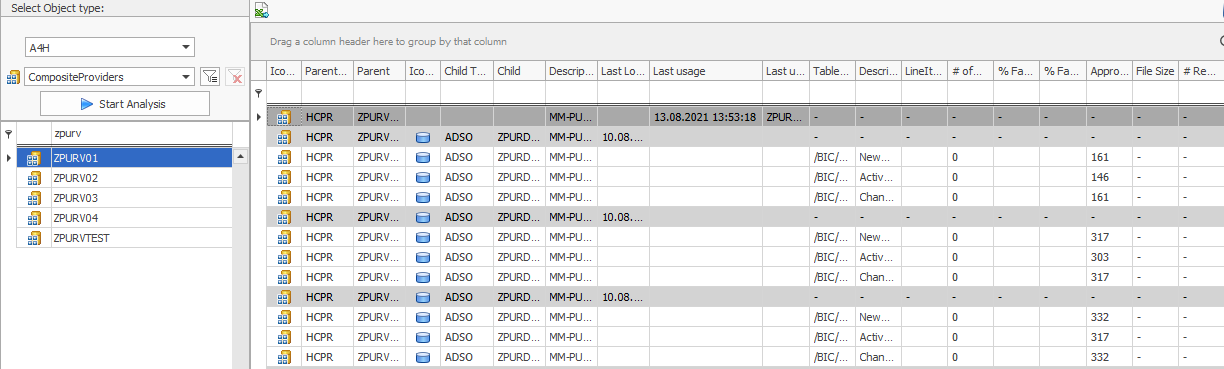

First, you can select a system and the object to be analyzed. Then the results regarding the usage and loading will be displayed as follows:

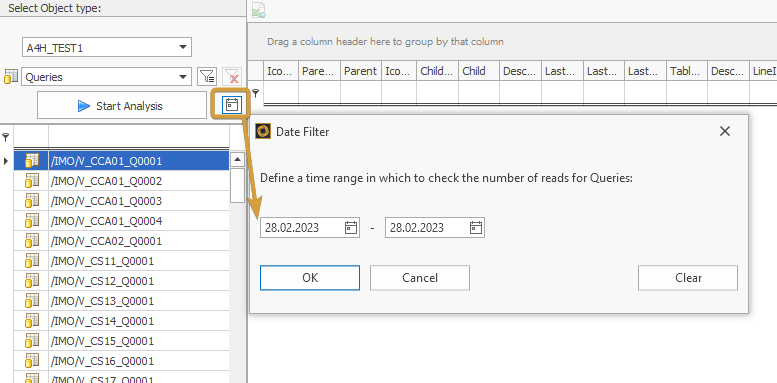

It is possible to check the number of reads for Queries in a specific time range which can be defined here:
The reads are based on table RSDDSTAT_OLAP.
Explanation of the columns
not filled for this entity type
Last load | Last usage | Last used via Query | Table/Dimension | LineItem | # of entries | % Fact.-Tab. E | % Fact.-Tab. F | approx. total memory consumption (KB) | File size | # Reads | |
|---|---|---|---|---|---|---|---|---|---|---|---|
Last load of InfoProvider or PartProvider | Last usage of InfoProvider via the start of Query | tables/dimensions of InfoProvider | InfoCube dimension is LineItem | Number of entries of InfoProvider or PartProvider tables | The ratio of the table to fact or e-fact table | For the tables of InfoProvider or PartProvider | Size of file | Number of times the Workbook/Query was read | |||
Advanced DSO |
|
|
|
|
|
|
|
|
|
|
|
Characteristics |
|
|
|
|
|
|
|
|
|
|
|
DSOs |
|
|
|
|
|
|
|
|
|
|
|
CompositeProvider |
|
|
|
|
|
|
|
|
|
|
|
InfoCubes |
|
|
|
|
|
|
|
|
|
|
|
InfoSets |
|
|
|
|
|
|
|
|
|
|
|
MultiProvider |
|
|
|
|
|
|
|
|
|
|
|
Process Chains |
|
|
|
|
|
|
|
|
|
|
|
Queries |
|
|
|
|
|
|
|
|
|
|
|
Sem. Part. Objects |
|
|
|
|
|
|
|
|
|
|
|
Workbooks |
|
|
|
|
|
|
|
|
|
|
|
