Create Objects from Data Flow

The Modeling of MultiProvider is not supported yet.

Importing Data Flows from SAP

Under “Data Flows” > “Import Data Flows from SAP” Data Flows can be imported from SAP BW. This function does not include the Data Flow Objects released in BW 7.3, but the automatically read Data Flows under each InfoProvider. The selection menu “SAP Systems” helps to choose the system from which Objects are supposed to be imported. Afterwards, the relevant Objects need to be selected and moved using drag and drop or the Arrow-button to the right.

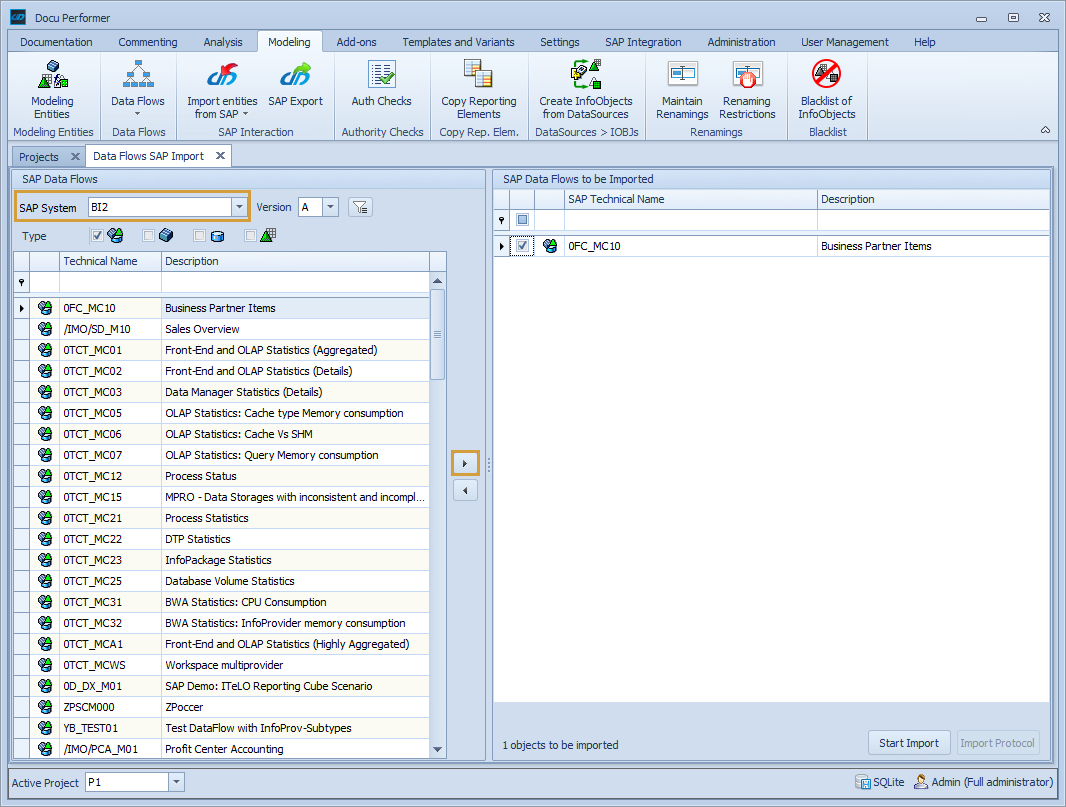

Data Flow import section with System and Object selection and import area

As soon as the import has started, the imported Data Flow can be restricted using a tree structure:

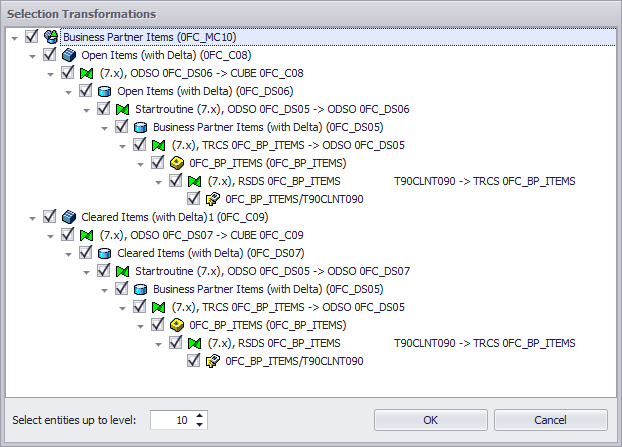

Tree structure to select the to be included objects

Afterward, the imported Data Flow can be opened:

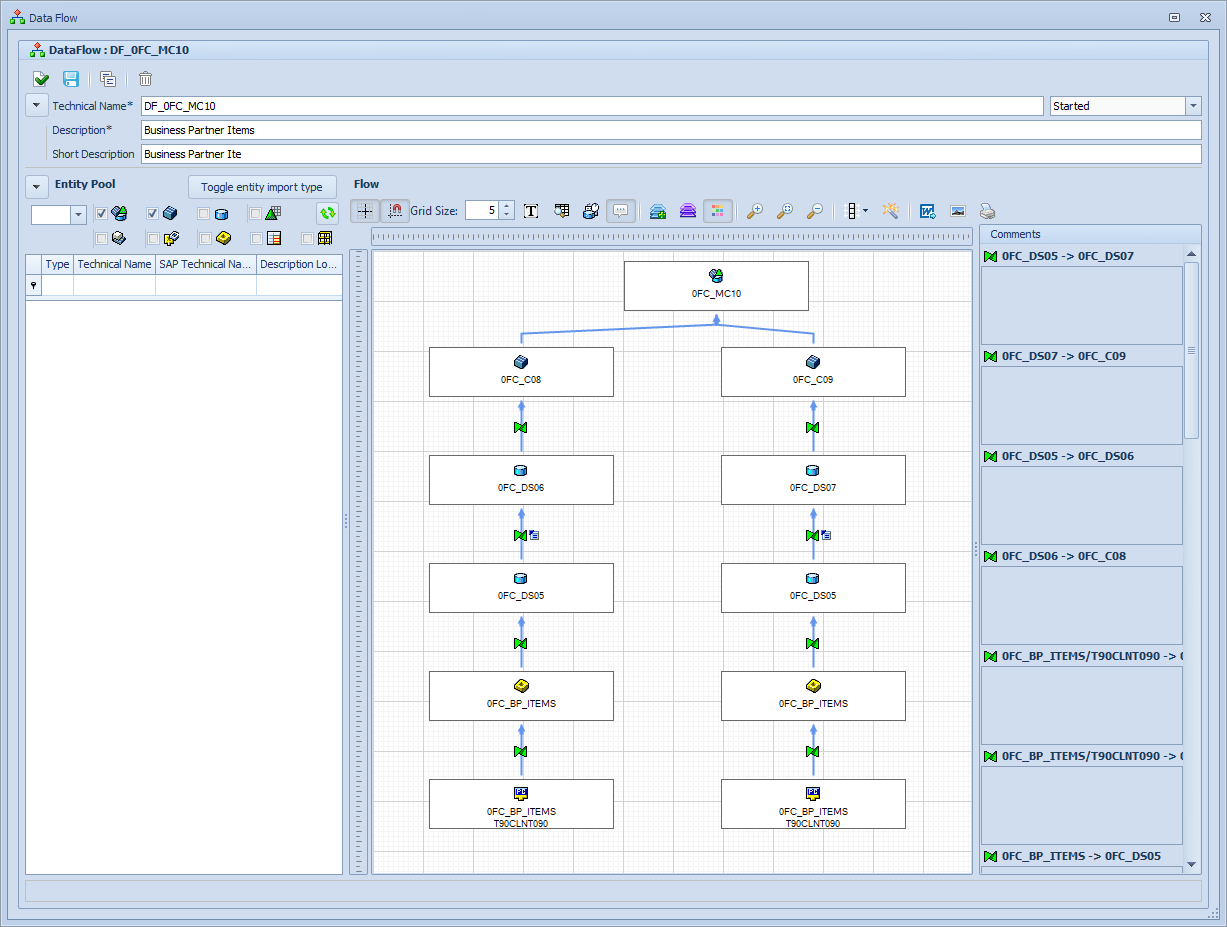

Imported Data Flow in the Data Flow editor
