Structure Items

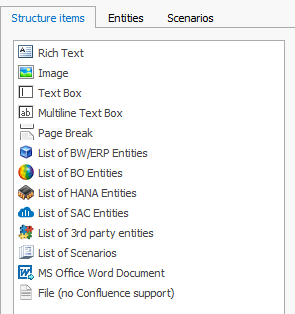

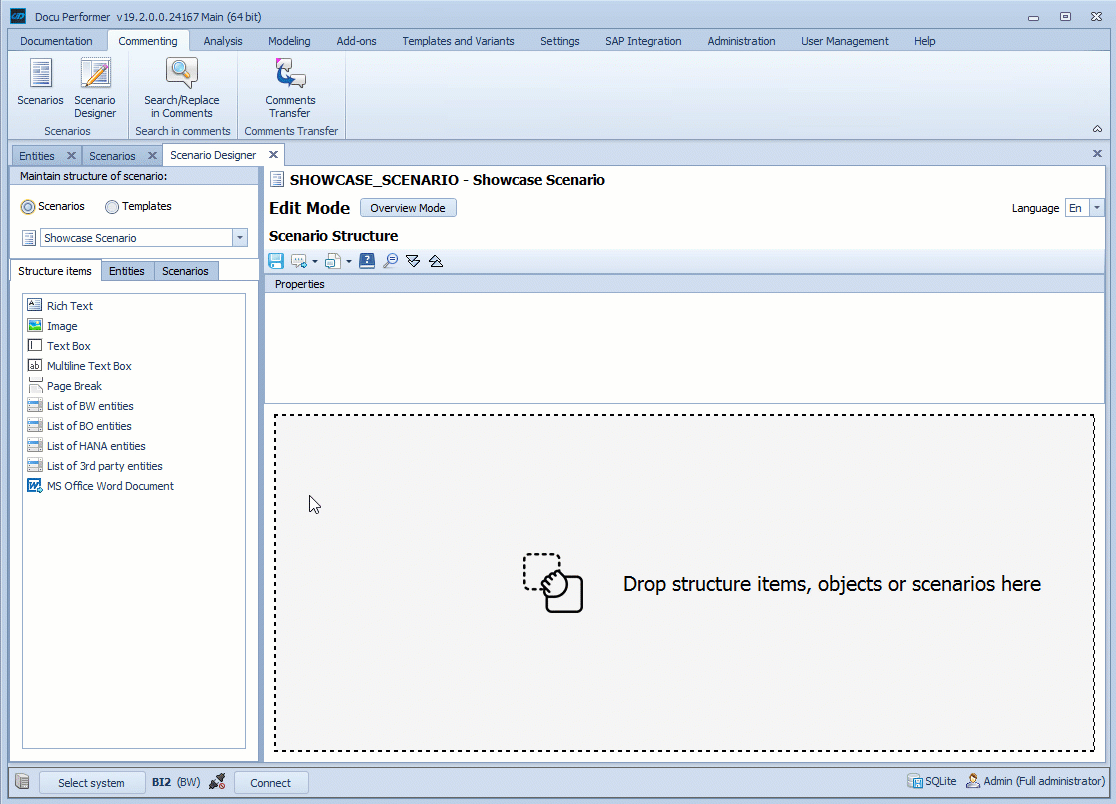

You can find the structure items in the tab "Structure items". They can be inserted to the Scenario structure via drag-and-drop.
You can use the following items to build up the Scenario structure:
All structure items can be edited by using the context menu.
Structure Items | Description |
|---|---|
Rich Text | These text items offer formatting options, tables, images, hyperlinks and more. Use this item if the comment needs the mentioned content and formatting options. |
Image | Insert images into the Scenario via this structure item. Use this item if you only want to insert an uncommented image into the structure. |
Text Box | Add unformatted one-line texts via this item. Assignment rules for object types can be defined for this structure item if the content is only single-line. |
Multiline Text Box | Add unformatted multiline texts via this item. Assignment rules for object types can be defined for this structure item if the content is more than one line long. |
Page Break | Force a page break on a certain point of the next page via this item (e.g before each chapter of the first level). We recommend adding a page break after each chapter of the first level. |
Object Lists | This structure-items insert a table with SAP objects. Entities can be displayed in a list that provides an extra overview of the used entities. |
List of Scenarios | Insert scenarios from other folders into a scenario. The scenarios are then displayed in the document in the form of a table. |
MS Office Word Document | Add a Word file to the Scenario, the file will be integrated into the Scenario during the export. Here it is possible to add older documentation to the new documentation. |
File | Add a file of any format to the scenario. The file will be written to the database and when the scenario is exported, it will be exported to the same folder as the scenario and linked in the scenario. |
Confluence is not supported!Structure elements have a language-independent technical name and a language-dependent description. The descriptions of different languages can be maintained via this dropdown menu:
Only the language-dependent description of the structure elements is displayed in the documentation.
