Scan for Look-Ups

General

The System Scout provides the functionality to detect and list Look-Ups in Transformations, Update- and Transfer Rules by scanning source code and transformation settings.

Integration of Look-Ups in the Data Flow

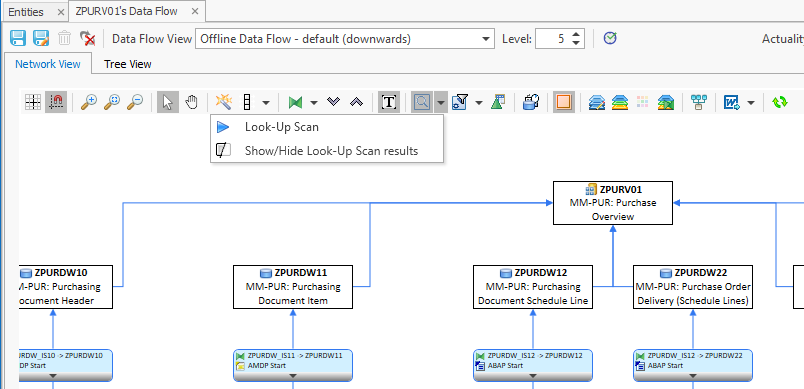

To search for Look-Ups in Transformations first generate the Data Flow of the InfoProvider, then select the button “Execute Scan for Look-Ups”.

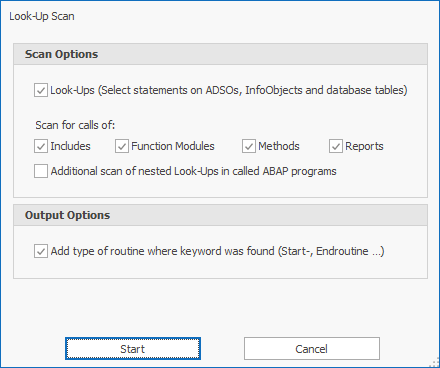

The following window offers to define settings for the scan:

• Look-Ups (Select statements on DSOs, InfoObjects and database tables)

• Scan for calls of:

  • Includes

  • Function Modules

  • Methods

  • Reports

  • Additional scan of nested Look-Ups in called ABAP programs

• Add the type of routine where keyword was found (Start-, Endroutine)

After the relevant settings have been selected, click on "Start":

Nested look-ups can also be displayed via the checkbox "Additional scan of nested Look-Ups in called ABAP programs"

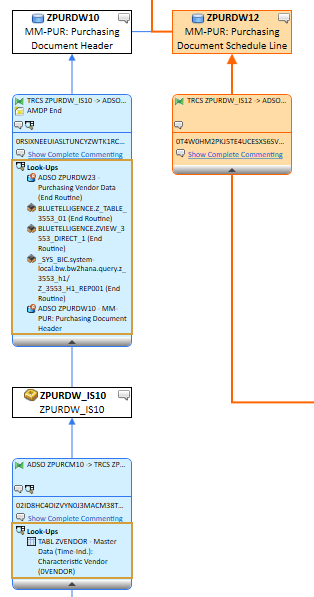

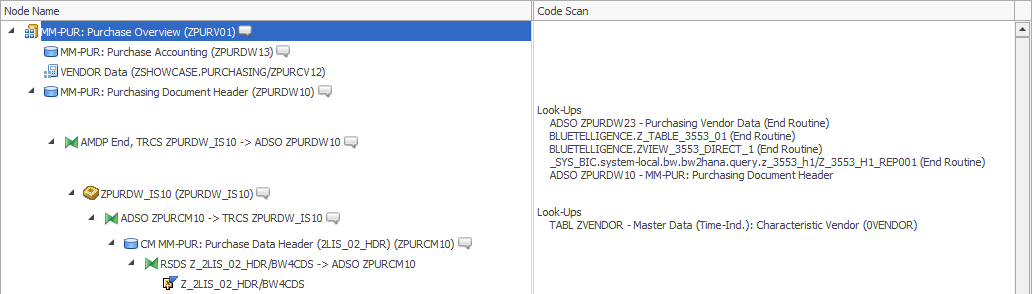

The result of the scan is displayed in the following way:

Tree View	Network View

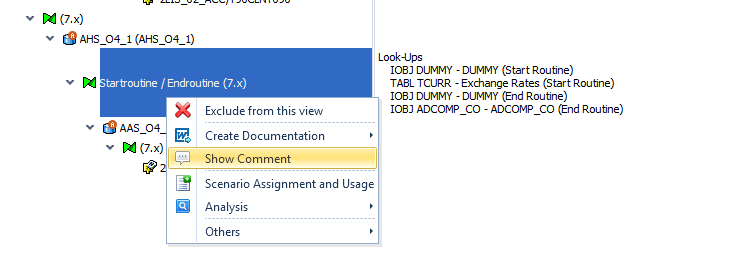

Insert Look-Ups in comments of Transformations/Rules

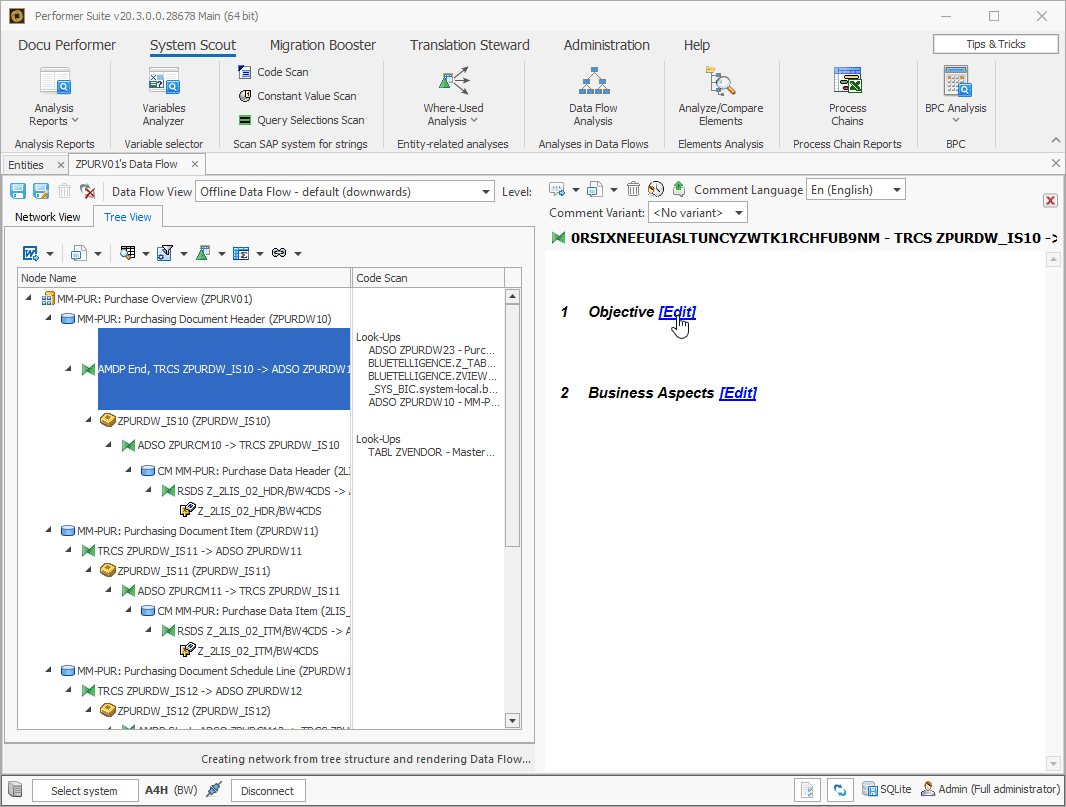

Within the comments of Transformations/Rules, the possibility to insert the overview of Look-Ups is offered by right mouse click. Start this by editing the comment and then a right-click in any rich text box.
